CNC Machining for Medical Robotics: Precision & Biocompatible Guide

Q: What is the tightest tolerance Alloyer can achieve for a surgical joint?

On our stabilized 5-axis milling centers, we can hold ±0.005 mm (5 microns) on critical diameters. To achieve this, we utilize temperature-controlled machining environments and perform in-process probing to account for any thermal drift during the cutting cycle.

Q: Which is better for medical robot housings: Aluminum or PEEK?

It depends on the requirement. PEEK is preferred for radiolucent applications (X-ray transparency) and where electrical insulation is needed. Aluminum 6061 or 7075 is better for structural stiffness, thermal dissipation, and cost-effectiveness in non-patient-contact frames.

Q: How do you prevent contamination during the machining process?

For medical parts, we use specialized 'clean' coolants that are free of animal-derived oils and sulfur. After machining, parts undergo a multi-stage ultrasonic cleaning process to remove all residual oils and chips before being packaged in a controlled environment.

Q: Can you machine Cobalt-Chrome for orthopedic robotic components?

Yes. While Co-Cr is notoriously difficult due to its hardness and abrasive nature, we have the rigid machine setups and high-pressure cooling systems required to achieve precision finishes in this alloy. We typically utilize ceramic inserts for Co-Cr to maintain the required Ra finishes.

CNC machining for medical robotics is the specialized subtractive manufacturing process used to produce high-precision, biocompatible components for surgical assistants, diagnostic robots, and rehabilitation systems. Alloyer provides medical-grade CNC production for titanium, stainless steel, and engineering plastics, delivering parts with micron-level tolerances and integrated DFM reviews within 72 hours for critical healthcare applications.

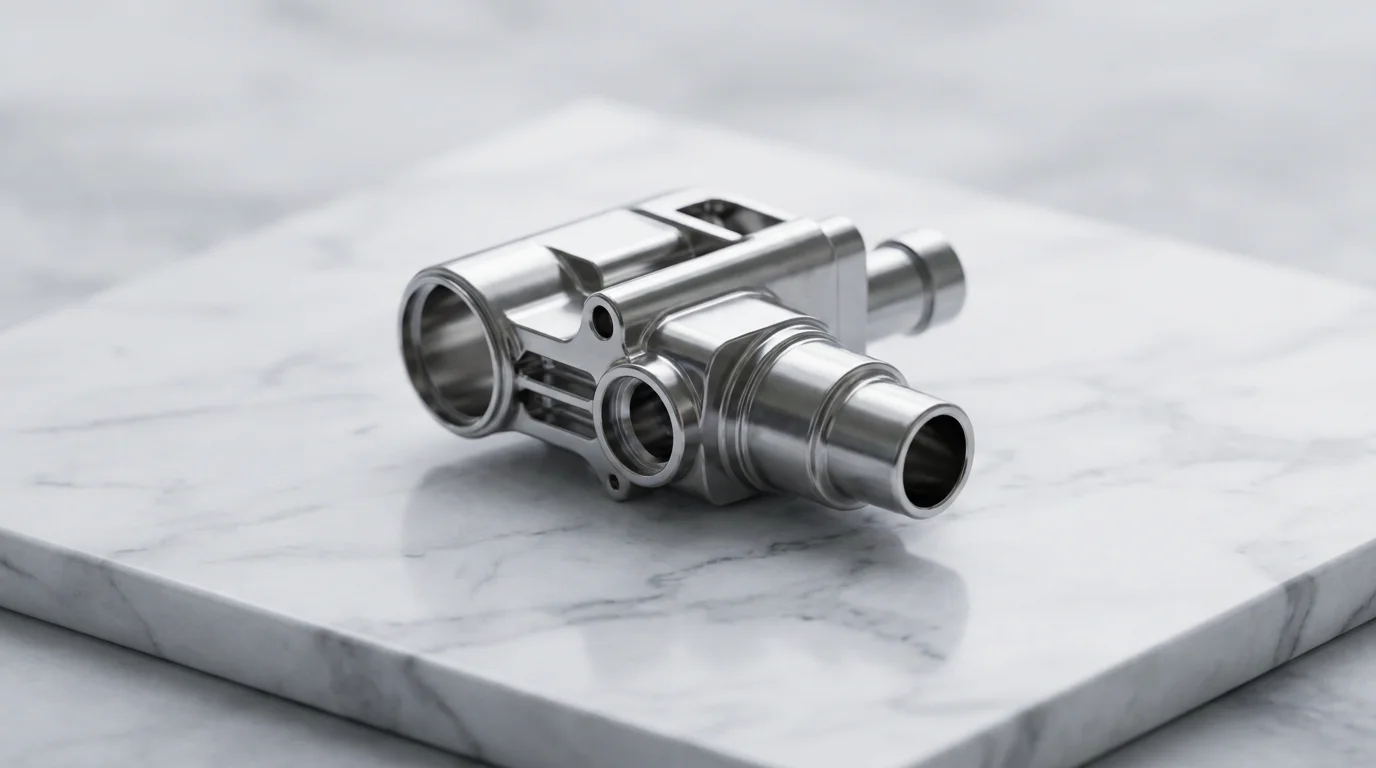

!Alloyer CNC machined Ti-6Al-4V ELI surgical robot end-effector with electropolished finish Caption: A 5-axis CNC-machined Ti-6Al-4V ELI (Grade 23) end-effector for a surgical robot. Alloyer delivers medical components like this with ±0.005 mm tolerances and Ra 0.4 μm surface finishes in 5–7 days.

Key Things to Know About CNC Machining for Medical Robotics

Biocompatibility is Non-Negotiable: Patient-contact components must use materials like Titanium Grade 23 (ELI) or Stainless Steel 316L to ensure long-term biological safety and corrosion resistance.

Micron-Level Precision: Surgical kinematics often require tolerances as tight as ±0.005 mm to achieve the sub-millimeter positioning accuracy necessary for minimally invasive procedures.

Surface Integrity & Sterilization: Parts must withstand repeated autoclave sterilization (high-pressure steam at 134°C). Electropolishing and passivation are critical post-processes for surgical-grade surface integrity.

Miniaturization Expertise: Micro-milling and Swiss-turning allow for the production of components smaller than 10 mm with wall thicknesses down to 0.5 mm, supporting the trend toward robotic-assisted microsurgery.

Certification & Traceability: Medical manufacturing requires full material lot traceability and validation. Alloyer provides certified material test reports (MTRs) to support ISO 13485 compliance.

DFM for Cleanability: Designs must prioritize radii and avoid "dead zones" where bio-contaminants can reside, ensuring compatibility with automated washer-disinfectors.

Dynamic Load Management: Components in exoskeletons and orthotic robots must handle high cyclic fatigue loads while maintaining lightweight profiles for user comfort.

Advanced QMS (Quality Management): Every component is backed by 100% inspection data, material heat-lot traceability, and COCs (Certificates of Conformance).

---

Why Medical Robotics Demand Specialized CNC Machining

The intersection of robotics and healthcare—spanning robotic-assisted surgery (RAS), diagnostic endoscopes, and exoskeleton rehab—operates under the most stringent engineering and regulatory constraints in the manufacturing world. Unlike industrial robotics where a 0.1 mm error might cause a slight misalignment, a 0.1 mm error in medical robotics can be life-threatening.

Biocompatibility and Material Validation

In medical robotics, material selection is dictated by the level of patient contact. Components used in surgical "active" zones must be inert and resistant to the aggressive chemical environment of the human body. CNC machining is the gold standard for these parts because it allows for the use of certified medical-grade raw materials (like Titanium ELI) that are difficult or impossible to process via traditional injection molding or 3D printing with the same level of density and surface finish.

High-Precision Kinematics for Microsurgery

Miniaturized surgical arms utilize complex cable-driven or micro-planetary transmissions. The efficiency of these units depends on the concentricity and surface smoothness of the machined housings. Alloyer leverages high-speed 5-axis machining to produce monolithic housings that eliminate the tolerance stack-up associated with multi-part assemblies, ensuring that a surgeon's 10 mm hand movement translates exactly to a 1 mm needle movement.

Sterilization and Cleanability

Medical robots must be "reprocessable." This means every CNC-machined surface must be free of burrs, pits, or "dead zones" where bio-contaminants can reside. High-precision CNC milling ensures smooth radii (R ≥ 0.5 mm) in all internal corners, making the parts compatible with automated washer-disinfectors and steam sterilization protocols.

---

Deep Dive: Material Selection for Surgical-Grade Components

Selecting the right material for a medical robot is a multi-dimensional challenge involving mechanical strength, biocompatibility, and machinability. The following materials represent the core of modern medical robotics manufacturing.

Titanium Grade 23 (Ti-6Al-4V ELI)

Extra Low Interstitial (ELI) titanium is the medical-grade variant of the standard Grade 5 alloy. It has reduced levels of oxygen, nitrogen, carbon, and iron, which significantly improves its ductility and fracture toughness. This makes it the preferred material for orthopedic implants and the high-load articulating joints of surgical robots.

Engineering Advantage: Higher fatigue resistance than standard Ti-6Al-4V, making it ideal for joints that undergo millions of surgical cycles.

Machining Perspective: Titanium ELI is work-hardening and has poor thermal conductivity. Alloyer utilizes specialized carbide tooling with high-pressure through-spindle coolant to maintain dimensional stability and tool life.

Stainless Steel 316L

316L is the low-carbon version of 316 stainless steel, offering exceptional corrosion resistance in saline and acidic environments (like the human body). It is the standard for non-implant surgical instruments, endoscope housings, and actuator shafts.

Engineering Advantage: Excellent strength and the ability to be polished to a mirror-like finish, reducing friction in flexible robotic catheters.

Machining Perspective: While more machinable than titanium, 316L is prone to "gumminess." Sharp cutting edges and consistent chip loads are required to prevent surface tearing, which would otherwise compromise the sterile integrity of the part.

Medical-Grade PEEK (Polyetheretherketone)

PEEK is a high-performance thermoplastic that can withstand repeated autoclave cycles without losing its mechanical properties. It is often used for components that require electrical insulation or radiolucency (translucency under X-ray).

Engineering Advantage: Chemically inert and lightweight, PEEK is perfect for instrument handles and sensor housings that enter the patient's body.

Machining Perspective: PEEK has high thermal expansion. Alloyer stabilizes PEEK blanks via annealing before and during the machining process to prevent dimensional drift as the material heats up under the tool.

Cobalt-Chrome Alloys (Co-Cr-Mo)

Used primarily in rehabilitation robotics and long-term articulating joints, Co-Cr alloys offer superior wear resistance and a high modulus of elasticity.

Engineering Advantage: Exceptional hardness (35-45 HRC as machined) makes it the best choice for surfaces that experience metal-on-metal contact.

Machining Perspective: This is one of the most difficult materials to machine. It requires rigid machine setups and slow cutting speeds. Alloyer utilizes ceramic tooling for roughing operations in Co-Cr to maintain throughput.

---

Advanced Micro-Transmissions for Surgical Robotics

Surgical robots require zero-backlash motion to achieve the sub-millimeter precision needed for delicate procedures. This is achieved through CNC-machined micro-planetary and cycloidal transmissions.

Planetary Gear Systems

In robotic-assisted surgery, planetary gears are used in the wrists of instruments to provide high torque in a very small volume.

Manufacturing Challenge: Gears with module sizes below 0.3 require hobbing or high-precision micro-milling.

Alloyer Strategy: We utilize Swiss-turn centers to machine the gear blanks followed by micro-hobbing to ensure that the tooth profile is within ±3 microns of the mathematical ideal.

Cycloidal Drive Components

Cycloidal drives offer extreme torque density and are inherently zero-backlash.

Manufacturing Challenge: The cycloidal disk profile is a complex trochoidal curve that must be machined with Ra 0.2 μm finish.

Alloyer Strategy: We use 5-axis simultaneous grinding on our CNC mills to achieve the required profile accuracy and surface finish in a single operation.

---

Biocompatible Coatings and Surface Treatments

Functional coatings improve wear resistance, lubricity, and biological integration in surgical environments.

1. Diamond-Like Carbon (DLC)

DLC coatings provide a hard, low-friction surface (coefficient of friction < 0.1) that is ideal for sliding components in robotic joints.

Application: Actuator pistons and guide rails in surgical arms.

Benefit: Eliminates the need for liquid lubricants that could contaminate the surgical field.

2. Physical Vapor Deposition (PVD) - TiN / AlTiN

PVD coatings like Titanium Nitride (TiN) increase the surface hardness and provide a chemical barrier against corrosion.

Application: Micro-gears and transmission pins.

Benefit: Extends the life of high-wear components by up to 500% and provides a visible color cue (gold/black) for instrument identification.

3. Electropolishing

Electropolishing removes a controlled amount of surface material (5-10 microns) to create a microscopically smooth surface.

Application: All patient-contact stainless steel surfaces.

Benefit: Improves cleanability and enhances the passive chromium-oxide layer for superior corrosion resistance.

---

Advanced Metrology and Dimensional Verification

In medical robotics, a part is only as good as its inspection data. Alloyer utilizes a multi-layered metrology stack to verify surgical tolerances.

1. Coordinate Measuring Machine (CMM)

We use Zeiss CMMs with ruby-tipped probes to measure 3D geometries with sub-micron resolution.

Precision: Sub-micron resolution for volumetric accuracy.

Use Case: Verifying the true position of gear centers in a micro-planetary gearbox.

2. Optical Inspection Systems

For miniature features (under 1 mm), we use high-magnification optical systems to verify edge radii and thread profiles without touching the part.

Benefit: Non-contact measurement prevents damage to delicate micro-features.

Use Case: Checking the sharpness and profile of robotic surgical blades.

---

Sterilization Methods and Material Compatibility

Medical robotic components must withstand repeated cycles of harsh sterilization environments without degrading.

1. Steam Autoclave (134°C, 2 bar)

The industry standard for reprocessable instruments.

Compatible Materials: Stainless Steel 316L, Titanium Gr 23, PEEK, 17-4PH.

Requirement: Design must allow for rapid heating/cooling without warping (avoid thin, unsupported sections).

2. Ethylene Oxide (ETO)

A low-temperature gas sterilization method for heat-sensitive electronics and sensors.

Compatible Materials: Almost all CNC materials, including electronics-integrated housings.

Requirement: Parts must be designed with "breather" paths for gas penetration and evacuation.

---

Quality Management & Risk Mitigation (FMEA)

In medical manufacturing, quality is managed through rigorous risk analysis and standardized validation protocols.

1. Failure Mode and Effects Analysis (FMEA)

We perform a manufacturing-level FMEA for every complex medical assembly. We identify potential failure points (e.g., tool wear causing tolerance drift) and implement preventive controls (e.g., in-process laser tool measurement).

2. Process Validation (IQ/OQ/PQ)

For high-volume production, we support Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) to ensure the machining process is stable and repeatable.

---

DFM (Design for Manufacturing) Checklist for Medical Robots

Designing for medical CNC machining requires a balance between surgical functionality and manufacturing efficiency. Follow this 8-point checklist to optimize your robot components.

1. Optimize Internal Radii

Avoid internal 90-degree vertical corners. Always specify a radius that allows for a standard cutting tool.

The Rule: Minimum radius = 10% of the hole depth. For a 20 mm deep pocket, use a 2 mm radius.

Impact: Prevents tool deflection and eliminates the need for slow, high-cost EDM (Electrical Discharge Machining).

2. Standardize Hole Diameters

While CNC can machine any size hole, using standard drill and tap sizes reduces tool change time and tooling cost.

The Recommendation: Use standard metric diameters (M1.6, M2, M3, M4, M5).

Impact: Ensures better thread quality and faster turnaround for prototype batches.

3. Wall Thickness Stability

Thin walls are common in weight-sensitive robots, but they are difficult to machine.

The Limit: 1.0 mm for Aluminum, 0.5 mm for Stainless Steel, 2.0 mm for PEEK.

Impact: Prevents "chatter" marks during machining and ensures the part doesn't warp during high-temperature sterilization.

4. Tolerance Allocation

Don't over-specify tolerances across the entire part.

The Strategy: Reserve ±0.005 mm for bearing bores and gear center distances. Use ±0.1 mm for non-functional exterior surfaces.

Impact: Can reduce the manufacturing cost per part by up to 60%.

---

Alloyer's Quality Assurance for Medical Components

For medical robotics, "Good" isn't good enough. Our quality assurance workflow is designed to meet the documentation needs of ISO 13485 and FDA-regulated engineers.

1. Material Lot Traceability

Every medical order at Alloyer includes a Level 1 Material Test Report (MTR). This documents the exact chemical composition of the alloy heat used to machine your parts, ensuring you have the data needed for long-term biocompatibility records.

2. 100% Dimensional Inspection

For surgical instruments, we perform 100% dimensional inspection on all "critical-to-function" features. We use high-precision Coordinate Measuring Machines (CMM) and vision systems to verify tolerances as small as 5 microns.

3. Surface Roughness Mapping

Using profilometers, we map the surface roughness (Ra) across multiple points on the component. This ensures that the entire sterile path of a surgical robot meets your Ra < 0.8 μm specification.

4. Cleaning & Packaging

After machining, medical parts undergo a 5-stage ultrasonic cleaning process to remove all residual oils and chips. They are then inspected under 20x magnification and sealed in double-barrier medical packaging to prevent contamination during transit.

---

Cost, Lead Time, and Batch Scaling

Manufacturing in the medical industry often starts with a single prototype and scales to pilot production. Alloyer's workflow is designed to support this lifecycle.

Quantity	Phase	Lead Time	Cost Relative to Prototype	Goal
1–5	Prototyping	3–5 Days	1.0x	Functional & Kinematic Validation
10–25	Verification	5–7 Days	0.7x	Sterilization & Biocompatibility Testing
50–100	Pilot Run	7–10 Days	0.5x	Clinical Trials / Early Access
500+	Production	14–21 Days	0.3x	Commercial Launch

---

FAQ: CNC Machining for Medical Robotics

What is the tightest tolerance Alloyer can achieve for a surgical joint?

On our stabilized 5-axis milling centers, we can hold ±0.005 mm (5 microns) on critical diameters. To achieve this, we utilize temperature-controlled machining environments and perform in-process probing to account for any thermal drift during the cutting cycle.

Which is better for medical robot housings: Aluminum or PEEK?

It depends on the requirement. PEEK is preferred for radiolucent applications (X-ray transparency) and where electrical insulation is needed. Aluminum 6061 or 7075 is better for structural stiffness, thermal dissipation, and cost-effectiveness in non-patient-contact frames.

How do you prevent contamination during the machining process?

For medical parts, we use specialized "clean" coolants that are free of animal-derived oils and sulfur. After machining, parts undergo a multi-stage ultrasonic cleaning process to remove all residual oils and chips before being packaged in a controlled environment.

Can you machine Cobalt-Chrome for orthopedic robotic components?
