CNC rapid prototyping is the fastest way for makers and robotics hobbyists to turn CAD designs into physical parts. Unlike 3D printing, CNC machining delivers production-grade precision and material properties from the very first prototype. Alloyer specializes in 1-piece prototyping with 72-hour delivery, starting from $8.99 for standard Al 6061 parts.

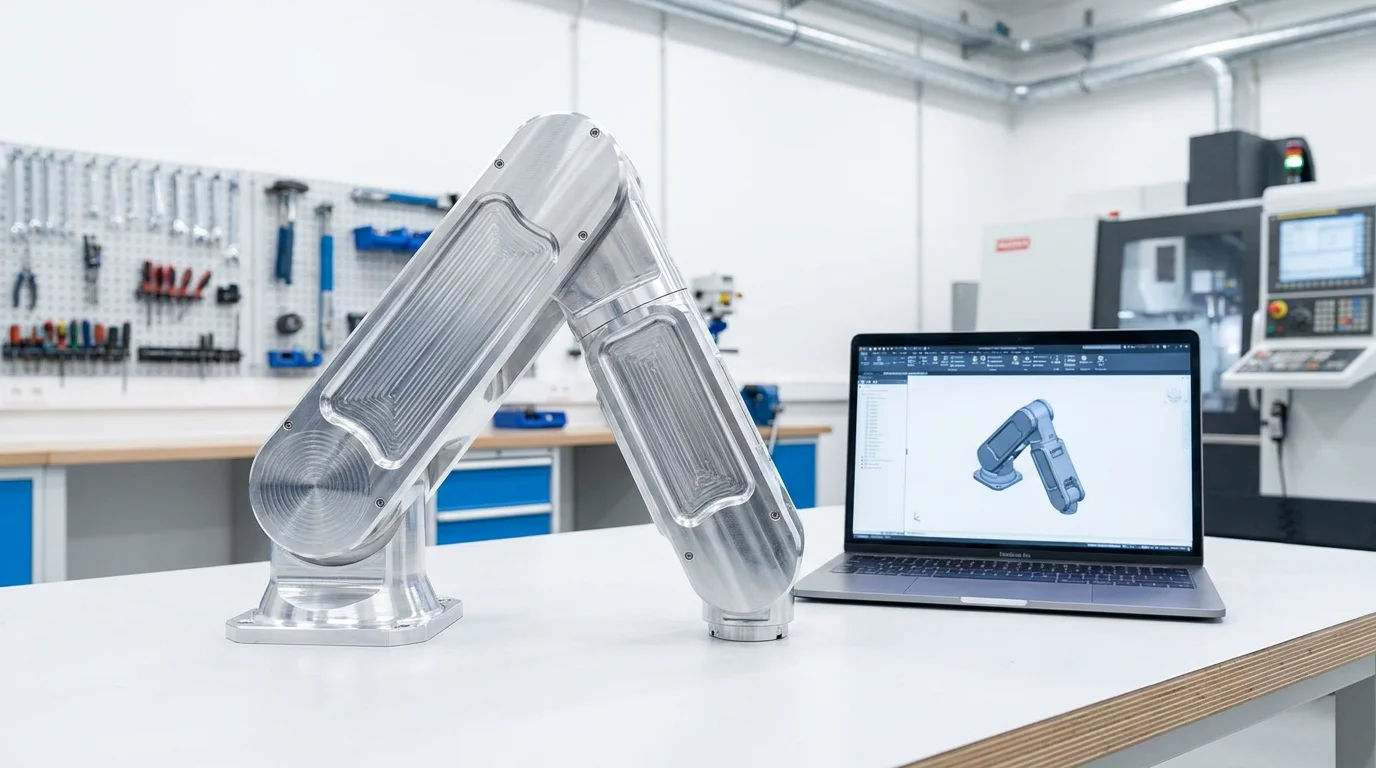

!CNC-machined aluminum robot arm component on a workbench with CAD laptop Caption: A single-piece CNC prototype for a robotic gripper, machined from Al 6061-T6 and delivered in 72 hours. Perfect fit on the first try — no iteration needed.
Why Makers Choose CNC Over 3D Printing for Robot Prototypes
While 3D printing is great for visual models, it falls short for functional robot parts that must bear loads, fit precisely, and survive testing. CNC machining produces parts from solid billet, giving you true material properties from day one.
| Feature | 3D Printing (FDM) | CNC Machining |
|---|---|---|
| Material Strength | 30-50% of solid | 100% of solid |
| Dimensional Accuracy | ±0.2 mm | ±0.01 mm |
| Surface Finish | Layer lines visible | Smooth, production-ready |
| Functional Testing | Limited load-bearing | Full load-bearing |
| Lead Time | 24-48 hours | 72 hours |
| Cost (1 pc) | $5-15 | From $8.99 |
---
What Makers Can Build with CNC Rapid Prototyping
Robot Arms & Manipulators
From single-DOF grippers to 6-axis articulated arms, CNC machining handles the precision joints, bearing seats, and motor mounts that 3D printing cannot. A typical 3-link robot arm prototype set machines in 2-3 days from Al 6061 or 7075.Drone Frames & UAV Components
Lightweight, rigid frames are critical for flight stability. We machine drone chassis, motor mounts, and gimbal brackets from carbon fiber-reinforced plastics or aluminum with Hardcoat Anodizing (Type III) for scratch resistance.Custom Actuator Housings
Need a gearbox housing for a custom servo? CNC prototypes let you test gear mesh tolerances (±0.02 mm) and bearing fits before investing in die-cast tooling. Turnaround: 72 hours.Open-Source Robot Builds
Building a Unitree Go2, MIT Cheetah, or Roboparty clone? We machine the structural links, joint housings, and end-effectors that off-the-shelf suppliers don't stock. 1-piece orders accepted — perfect for one-off builds.---
Material Guide for Maker Projects
| Material | Best For | Cost Index | Lead Time |
|---|---|---|---|
| Al 6061-T6 | General robot parts, brackets, mounts | 1.0x (Baseline) | 72 hours |
| Al 7075-T6 | High-stress links, arms, landing gear | 1.5x | 72 hours |
| POM (Delrin) | Gears, bushings, low-friction slides | 0.8x | 72 hours |
| Nylon PA6 | Flexible couplings, wear pads | 1.2x | 3-4 days |
| FR4 (G10) | Insulating mounts, PCB spacers | 0.9x | 3-4 days |
| PEEK | High-temp, chemical-resistant parts | 15.0x | 5-7 days |
---
The Alloyer Rapid Prototyping Workflow
Step 1: Upload CAD (5 minutes)
Upload your STEP or STL file. Our AI analyzes geometry, material, and tolerances to generate an instant quote — no waiting for human review.Step 2: Free DFM Review (Included)
Our engineers flag potential issues: thin walls, sharp internal corners, or unreachable undercuts. Fix them now, save days later.Step 3: Machine & Ship (72 hours)
Your part is machined on a 3-axis or 5-axis CNC center, inspected, and shipped. Track progress in real time.---
Cost Breakdown: A Real Maker Project
Project: 4-link robotic arm with gripper (1 prototype set)
| Component | Material | Qty | Unit Cost | Total |
|---|---|---|---|---|
| Base mount | Al 6061-T6 | 1 | $12.50 | $12.50 |
| Upper arm link | Al 6061-T6 | 1 | $15.00 | $15.00 |
| Forearm link | Al 6061-T6 | 1 | $14.00 | $14.00 |
| Gripper base | Al 6061-T6 | 1 | $10.00 | $10.00 |
| Gripper jaws | Al 7075-T6 | 2 | $8.99 | $17.98 |
| Total | 6 | $69.48 |
Compare to: 3D printing the same set (~$40) + re-printing after fit failure (~$40) + final CNC anyway (~$70) = ~$150 and 2 weeks lost.
---
DFM Tips for Maker-Friendly CNC Parts
1. Internal Radii ≥ 1.5 mm: Standard end mills need room to turn. Sharp corners require costly EDM. 2. Wall Thickness ≥ 1.5 mm: Prevents chatter and deflection during machining. 3. Avoid Deep Pockets > 4x Diameter: Tool length-to-diameter ratio limits accuracy. Split into assemblies if needed. 4. Use Through-Holes Where Possible: Blind holes trap chips and increase cost. 5. Design for Standard Tool Sizes: 3 mm, 4 mm, 6 mm end mills are cheapest. Custom sizes add setup time.
---
FAQ
How fast can I get a single prototype part?
72 hours for Al 6061/7075, POM, and Nylon. PEEK and titanium take 5-7 days. We accept 1-piece orders — no minimums.What file formats do you accept?
STEP, STL, IGES, and SolidWorks files. For fastest quoting, use STEP with clearly labeled dimensions.Can I prototype in plastic and later switch to metal?
Yes. POM and Nylon prototypes are excellent for testing fit and motion. Once validated, we re-machine in Al 6061 or 7075 for production strength.Do you offer anodizing or other finishes for prototypes?
Yes. Standard anodizing (Type II, clear or dyed) adds 1-2 days. Hardcoat Anodizing (Type III) for wear resistance adds 2-3 days.What if my design has errors?
Our free DFM review catches 90% of issues before machining. If a part fails inspection due to our error, we re-machine at no cost.---
Ready to build your robot? Upload your CAD for an instant quote and free DFM review. 1-piece prototyping accepted. 72-hour delivery. Upload CAD & Get Instant Quote →
